Shimano FH-TC500-MS CL 32H

5,900.00 ден

SKU: EFHTC500MSBC Category: Задни главини

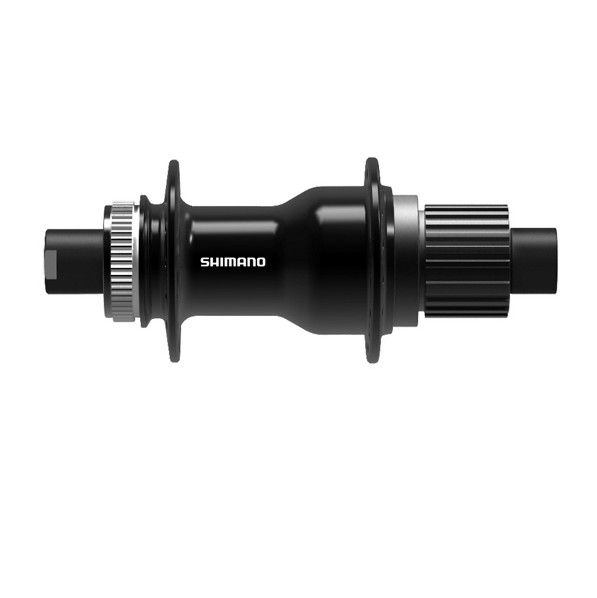

Shimano FH-TC500-MS-B 12-speed Center-Lock Rear Hub 12x142mm

The Shimano FH-TC500-MS-B rear hub with center-lock disc brake mount offers the well-known reliability and performance for 12-speed Micro-Spline cassettes in the Boost E-Thru thru-axle design. Robust, easily adjustable and durable FREEHUB rear hub for disc brakes with high quality seals

Simple setup and reliable trail performance
Easy disc brake rotor installation with spline mount and lock ring
Stiff and lightweight 12 mm E-THRU skewer system
Labyrinth & Contact Sealing
Smaller spline diameter for 10T top gear
O.L.D.: 142mm
#13 and #14 spoke compatible
Only compatible with Shimano Micro-Spline cassettes!

Product features

Use: MTB, Trekking
Model: FH-TC500-MS-B
Freehub body: Shimano 12-speed
Brake type: Center Lock Disc
Flange distance: 61.45mm
Offset: 7.6mm
P.C.D.: left 50.5mm / right 51.5mm
Flange diameter: left 59.3mm / right 60.3mm
Hub: Labyrinth and contact seals
Type: E-Thru Axle Boost
Axle length: 12x142mm

Spoke hole 32 hole

Material

Hub: Aluminum
Axle: Steel
Freehub body: Steel

Technology

Center Lock System

The CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.

Micro-Spline
MICRO SPLINE delivers lightweight aluminum FREEHUB body to reduce weight and 10 teeth top gear. Use combination with MICRO SPLINE cassette sprocket and FREEHUB.Benefits & Features

Lightweight aluminum MICRO SPLINE FREEHUB seamlessly integrates with small 10-tooth top gears.
Smaller and more widely distributed splines limit cog damage on lightweight aluminum FREEHUB.
