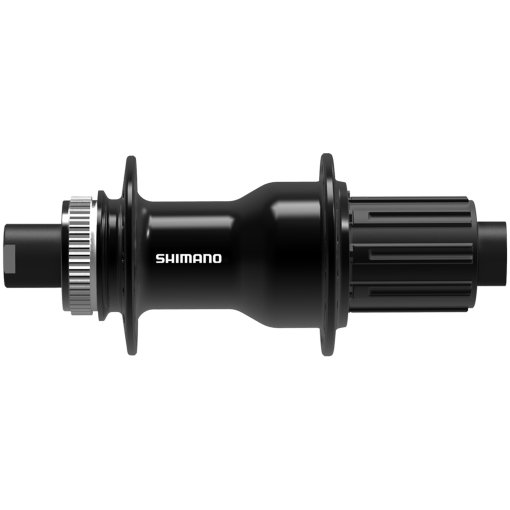

Shimano FH-TC500 8/9/10/11-speed Center-Lock Rear Hub 12x148mm
The Shimano FH-TC500-HM-B rear hub with center-lock disc brake mount offers the well-known reliability and performance for 8-/9-/10-/11-speed cassettes in the Boost E-Thru thru-axle design. Robust, easily adjustable and durable FREEHUB rear hub for disc brakes with high quality seals
- Simple setup and reliable trail performance
- Easy disc brake rotor installation with spline mount and lock ring
- Stiff and lightweight 12 mm E-THRU skewer system
- Labyrinth & Contact Sealing
- O.L.D.: 148mm
- #13 and #14 spoke compatible
Product features
- Use: MTB, Trekking
- Model: FH-TC500-HM-B
- Freehub body: Shimano 8-/9-/10-/11-speed
- Brake type: Center Lock Disc
- Flange distance: 61.45mm
- Offset: 7.6mm
- P.C.D.: left 50.5mm / right 51.5mm
- Flange diameter: left 59.3mm / right 60.3mm
- Hub: Labyrinth and contact seals
- Type: E-Thru Axle Boost
- Axle length: 12x148mm
Spoke hole 32 hole
Material
Hub: Aluminum
- Axle: Steel
- Freehub body: Steel
