Shimano DEORE M6220 Disc Brake Set

Robust and intuitive: Shimano DEORE BL-M6200+BR-M6220 4-piston disc brake set

The DEORE BL-M6200 brake levers can be combined with both the powerful BR-M6220 four-piston caliper and the lighter BR-M6200 two-piston caliper. New seals and a revised low-viscosity mineral oil ensure a smooth oil flow and a consistent pressure point in both hot and cold conditions.

DEORE brakes – The brake lever utilises SHIMANO’s SERVO WAVE technology, which ensures faster pad contact and a smooth, easily controllable build-up of braking force. In combination with the newly developed calipers, the system offers consistent piston return and reliable braking performance, even on long descents and in changing trail conditions.

Features – Shimano DEORE BL-M6200/BR-M6220 4-piston disc brake set

• Consistent braking control: The all-new low-viscosity mineral oil ensures a reliable and powerful performance curve at all temperatures and on any terrain
• Choice of calipers: Combine the BL-M6200 with the BR-M6220 Enduro or BR-M6200 XC calipers for a lightweight, high-performance setup
• Durability: The BL-M6200 aluminium brake lever is manufactured using SHIMANO’s proven forging process
• Clean cable routing: The redesigned cable routing on the BL-M6200 ensures a tidy appearance
• I-Spec EV compatible: Mounting the shifter on the brake lever for a clean, tidy cockpit
• Redesigned seals and low-viscosity oil: Reliable pad contact in all temperatures and trail conditions
• Heat dissipation: Resin or metal pads, with or without cooling fins, allow for precise tuning of braking performance in combination with SHIMANO brake discs
• No rattling: Redesigned brake pads and the oval mount eliminate unnecessary noise

Product features

• Application: MTB, Enduro, E-MTB
• Groupset: DEORE M7200/M6200
• Model: BL-M6200/BR-M6220 (front wheel + rear wheel)
• Brake type: Hydraulic disc brake
• Mounting: Front / Rear
• Brake lever: BL-M6200
• Lever length: 2-finger
• Clamp: open
• Mounting system: I-Spec EV (I-Spec EV is not compatible with I-Spec II and I-Spec B shifters!)
• Adjustable pressure point: Yes
• Reach adjustment: Yes, with tool
• Brake caliper: BR-M6220 (4-piston)
• Brake caliper mount: Post-mount
• Brake pad: Resin without cooling fins
• Brake hose: SM-BH90-SBM
• Hose lengths: front 1000mm + rear 1700mm (can be shortened)
• Hose connection: Straight brake lever / Straight brake caliper
• One-way bleed valve: Yes
• Brake fluid: Low-viscosity mineral oil (SM-LV-OIL)
• Recommended brake disc: SM-RT70
• Aluminium

Contents

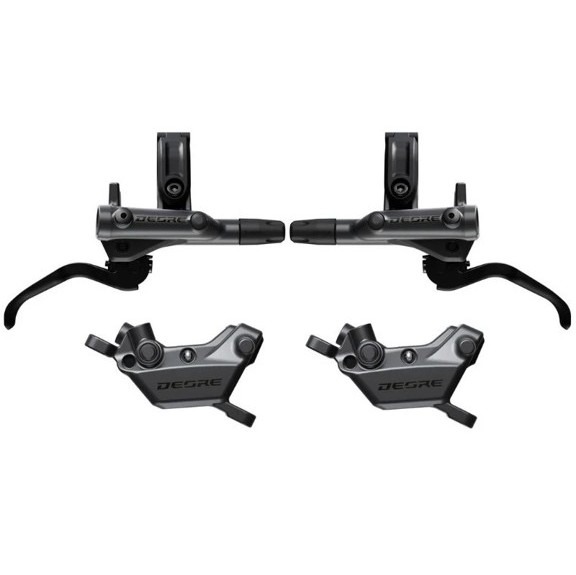

• 2 x Shimano DEORE BL-M6200 brake levers (left + right)
• 2 x Shimano DEORE BR-M6220 (4-piston) brake calipers
• 2 x SM-BH90 brake hoses, 1000 mm + 1700 mm long (can be cut to size)
• 2 x Resin brake pads without cooling fins
• 4 x Brake caliper mounting bolts
• 2 x Hose connection kit (ferrule in brake lever and pin already fitted in the hose)
• J-Kit – The SM-BH90 brake hoses are filled with SM-LV-OIL mineral oil and pre-fitted to the BR-M6220 brake calipers!

Brake discs and adapters not included!
