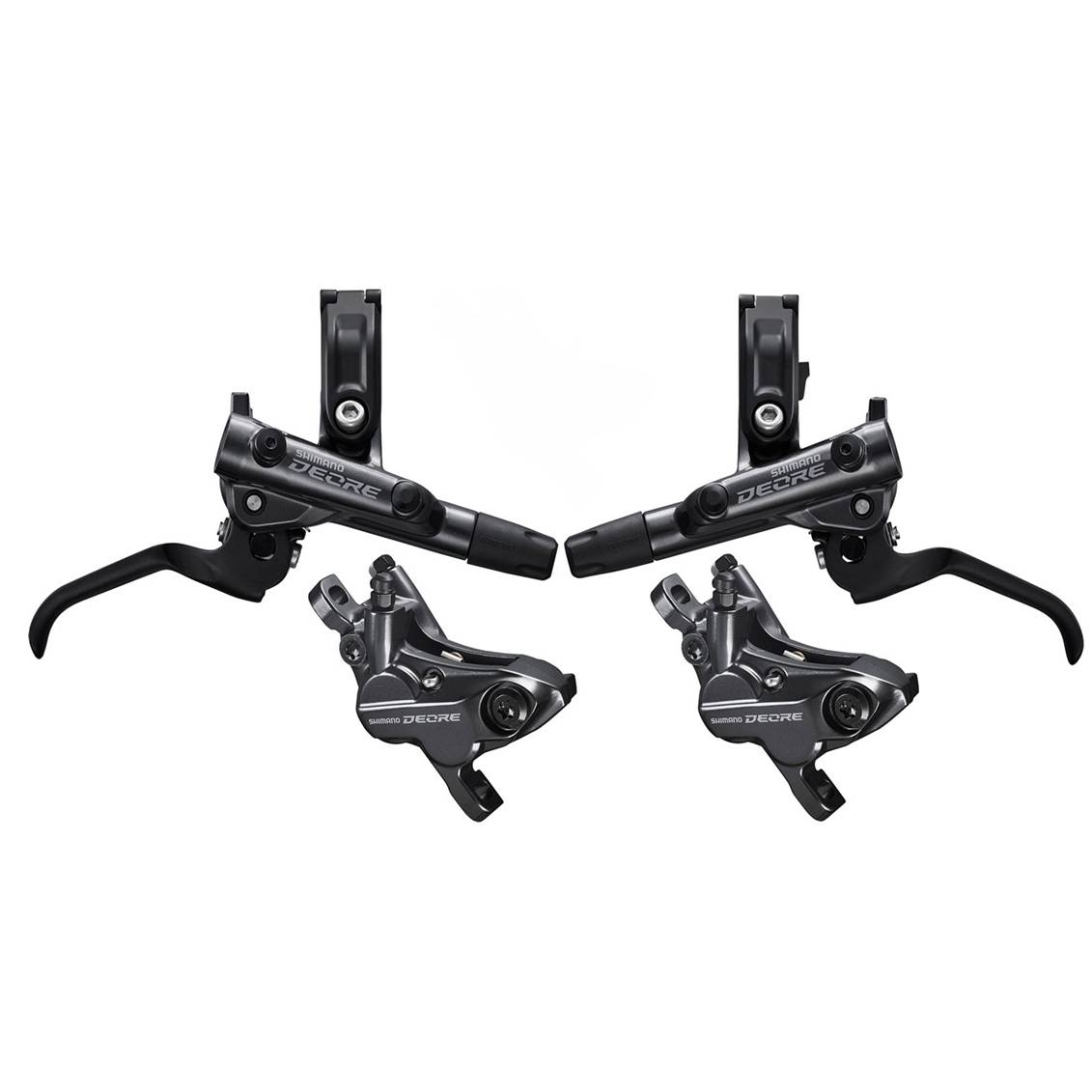

Shimano Deore BR-M6120

Molded from the same DNA as XTR, DEORE XT and SLX, the new M6100 series delivers Shimano’s proven 12-speed technologies at DEORE level.

Features – Shimano DEORE BR-M6120 4-Piston Disc Brake Set

• Quicker rebound between actions maintains rider concentration
• Greater flexibility and action-optimized cockpit layout
• Update brake lever shape
• Seamless operation
• High rigidity
• 4-Piston Caliper Brake
• Caliper for Postmount Brake
• Optimized ergonomic 2-finger brake lever
• One-Way bleeding
• I-Spec EV compatible – securing the shift lever on the brake lever
• Rotors in 140, 160, 180, 203mm are available separately!

Product features

• Use: MTB
• Group: DEORE M6100
• Model: BR-M6120 (front+rear)
• Brake type: Hydraulic Disc-Brake
• Brake lever: BL-M6100
• Lever length: 2-Finger
• Mount: left + right
• Clamp: open
• Mounting system: I-Spec EV (I-Spec EV is not compatible with I-Spec II and I-Spec B shifters!)
• Reach adjustment: Yes, with tool
• Caliper: BR-M6120 (4-Piston)
• Brake mounting: Postmount
• Brake pads: D03S Resin without Fin
• Brake hose: SM-BH90-SS
• Brake hose lengths: front 1000mm + rear 1700mm (shortable)
• Cable connection: Straight brake lever / Straight caliper
• One-Way bleeding: Yes
• Brake fluid: Mineral oil
• Recommended brake rotor: SM-RT64, SM-RT66

Material

• Lever: Aluminum Anodized
• Caliper: Aluminum Painted

---

Scope of delivery

• 2 Brake levers DEORE BL-M6100 left + right
• 2 Brake calipers DEORE BR-M6120 (4-Piston)
• 2 Brake hoses SM-BH90-SS 1000mm + 1700mm long (shortable)
• 2 Tube Joint Kits
• 2 Brake pads D03S Resin without Fin
• 4 Screws for brake caliper
• The brake hoses SM-BH90-SS are with mineraloil filled and pre-mountedon the calipers BR-M6120!
